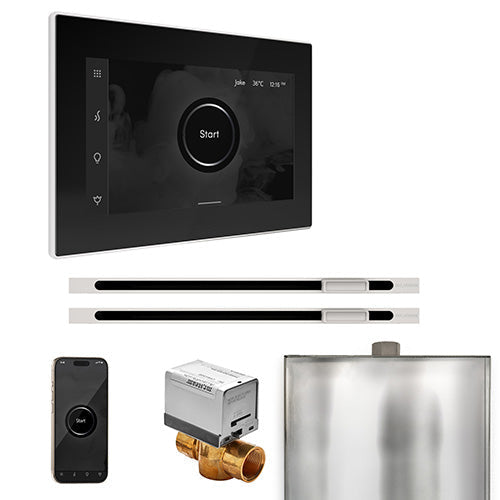

Mr. Steam Black Fascia / White Mr. Steam XButler Max Linear Control Package
Mr. Steam Black Fascia / Satin Steel Mr. Steam XButler Max Linear Control Package
Mr. Steam Black Fascia / Satin Brass Mr. Steam XButler Max Linear Control Package
Mr. Steam Black Fascia / Polished Nickel Mr. Steam XButler Max Linear Control Package

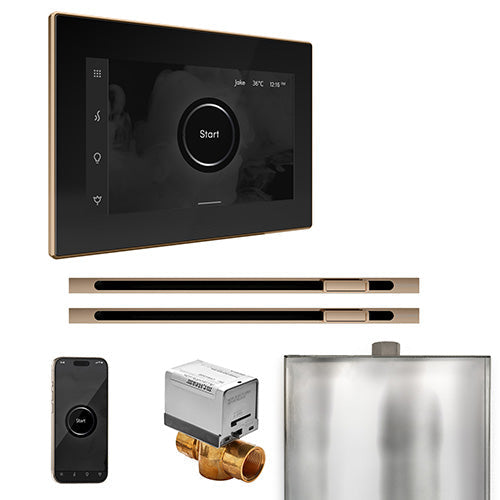

Mr. Steam Black Fascia / Polished Gold Mr. Steam XButler Max Linear Control Package

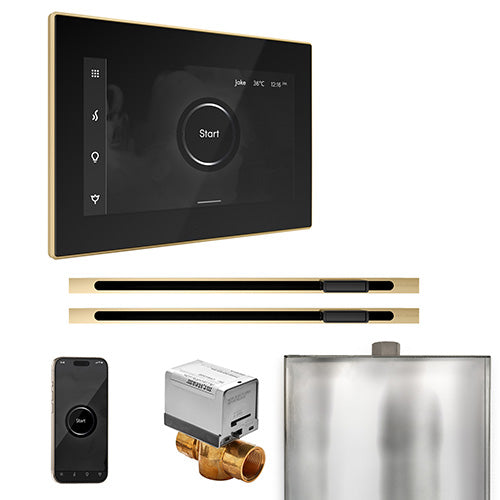

Mr. Steam Black Fascia / Polished Brass Mr. Steam XButler Max Linear Control Package
Mr. Steam Black Fascia / Oil Rubbed Bronze Mr. Steam XButler Max Linear Control Package
Mr. Steam Black Fascia / Nouveau Bronze Mr. Steam XButler Max Linear Control Package
Mr. Steam Black Fascia / Matte Black Mr. Steam XButler Max Linear Control Package

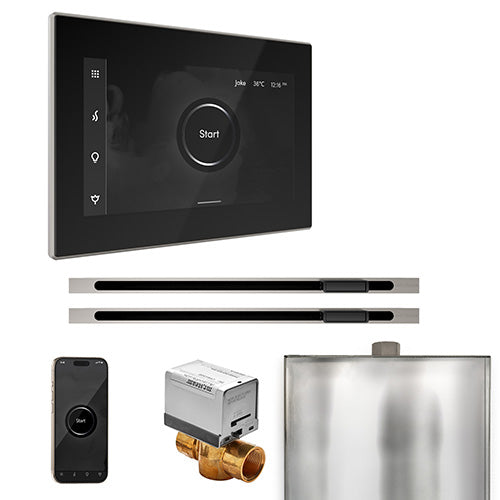

Mr. Steam Black Fascia / Brushed Nickel Mr. Steam XButler Max Linear Control Package

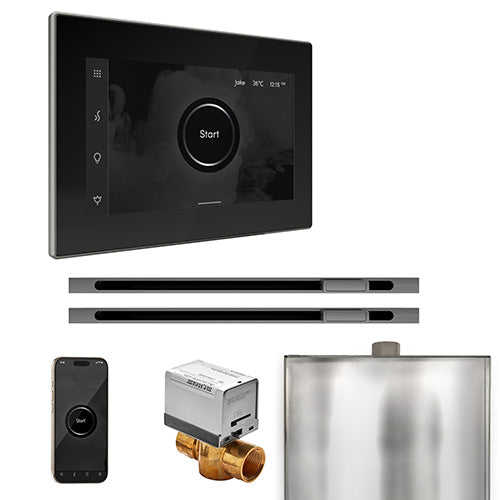

Mr. Steam Black Fascia / Brilliant Black Mr. Steam XButler Max Linear Control Package
Mr. Steam Black Fascia / Brushed Bronze Mr. Steam XButler Max Linear Control Package
Mr. Steam Black Fascia / Polished Chrome Mr. Steam XButler Max Linear Control Package
Mr. Steam White Fascia / White Mr. Steam XButler Max Linear Control Package

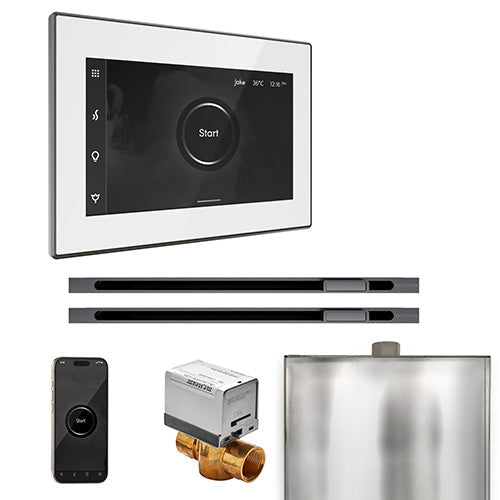

Mr. Steam White Fascia / Satin Steel Mr. Steam XButler Max Linear Control Package

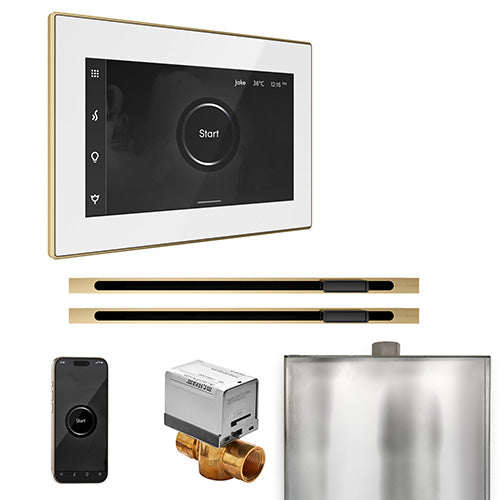

Mr. Steam White Fascia / Satin Brass Mr. Steam XButler Max Linear Control Package
Mr. Steam White Fascia / Polished Nickel Mr. Steam XButler Max Linear Control Package
Mr. Steam White Fascia / Polished Gold Mr. Steam XButler Max Linear Control Package
Mr. Steam White Fascia / Polished Brass Mr. Steam XButler Max Linear Control Package
Mr. Steam White Fascia / Oil Rubbed Bronze Mr. Steam XButler Max Linear Control Package
Mr. Steam White Fascia / Nouveau Bronze Mr. Steam XButler Max Linear Control Package

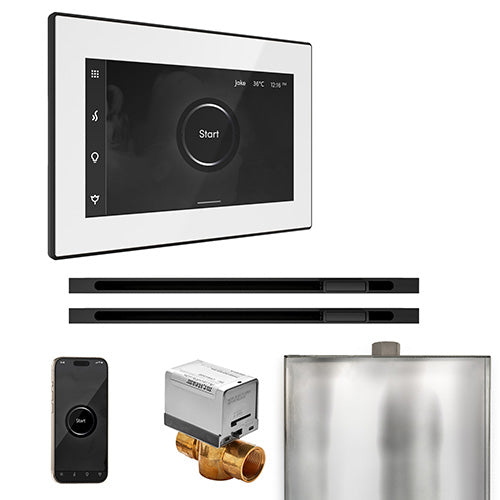

Mr. Steam White Fascia / Matte Black Mr. Steam XButler Max Linear Control Package
Mr. Steam White Fascia / Brushed Nickel Mr. Steam XButler Max Linear Control Package
Mr. Steam White Fascia / Brilliant Black Mr. Steam XButler Max Linear Control Package
Mr. Steam White Fascia / Brushed Bronze Mr. Steam XButler Max Linear Control Package
Mr. Steam White Fascia / Polished Chrome Mr. Steam XButler Max Linear Control Package

Mr. Steam XButler Max Linear Control Package

Leisurecraft Logo
Authorized Dealer - Full Warranty Included

ONE TIME INVESTMENT

Sale price$3,920.00
+ Free Shipping
OR
Model: BXXLWHPC
Price Match Guarantee
No Sales Tax in Most States
FREE Shipping (over 500$ )
Questions? Call Us: 1-833-322-4836
MAKING STEAM SINCE 1917
Face Color:

Face Color

Available Finishes:

Available Finishes

$ Shipping Fee to United States Estimated arrival between May 29 and June 03 Curbside delivery only and will lower the item's to ground level.
Avatar

Need Sauna Advise?

Reach out for expert help and great deals!

Chat Icon

Expert Live Chat

Time Icon
Mon–Sun: 9am–8pm
How does delivery work?

Mr.Steam products ship free to your doorstep via FedEx or UPS. Once dispatched, you’ll receive a tracking number to follow your order. All shipments are fully insured and carefully packaged at our Chicago facility to ensure safe delivery.

What are the electrical requirements?

MrSteam steam generators are designed to operate on 208V or 240V power, with residential models typically using single-phase electrical service. Commercial models are also available in 208V, 240V, or 480V configurations, most commonly in three-phase.

What is the warranty?
  • Each component in this package is backed by a limited 2-year warranty covering defects in materials and workmanship.
Description

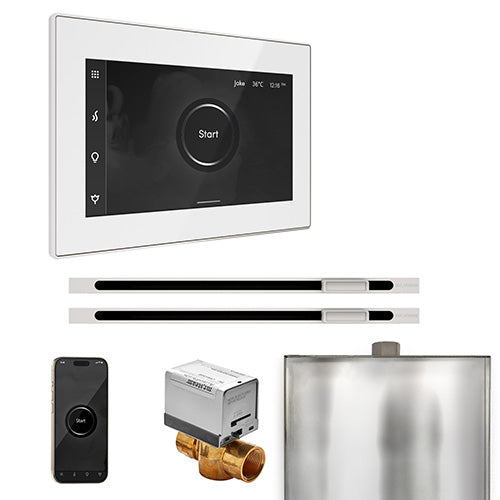

XButler Steam Shower Control Package w/ iSteamX Control and Two Linear SteamHeads

The XButler Max Linear Control Package delivers complete command over your steam shower environment. This premium set includes the iSteamX Control, two Linear SteamHeads, AutoFlush System, and Condensation Pan—allowing you to personalize temperature, profiles, and steam therapies with intuitive precision.


Steam generator sold separately.

Features

iSteamX Control

  • Award-winning, full-color LCD touchscreen

  • Automatic preheat functionality

  • Available in 6 languages

  • Access time, temperature, apps, profiles, and therapies

  • Create up to 8 personalized profiles

  • Enjoy audio via aux, radio, or Bluetooth

  • Built-in safety with timed shut-offs + passcode protection

  • Optional chromatic lighting and aromatic infusers

  • Waterproof touchscreen recognizes finger vs. water droplets

  • Strong, long-lasting solid brass construction

  • Wall-mount installation

  • Dimensions: 7.6"W x 0.6"D x 5.2"H

  • Limited 2-year warranty

Linear SteamHeads (2)

  • Slender horizontal opening disperses steam smoothly and evenly

  • Diverter directs steam upward to reduce the emission zone

  • Patented baffles deliver whisper-quiet steam

  • Visible AromaTray for essential oils

  • No moving parts

  • Installs flush to the wall and nearly disappears in the grout line

  • Dimensions: 16"W x 4.8"D x 9.3"H

  • Limited 2-year warranty

AutoFlush System

  • Automatic self-cleaning after each steam session

  • Flushes old water and impurities through a 1" electronically activated valve

  • Quiet operation

  • Plug-and-play installation

  • Dimensions: 4"W x 2.4"D x 4.4"H

  • Limited 2-year warranty

Condensation Pan

  • Protects against potential water leaks

  • Collects and redirects water safely

  • Supports generator with built-in elevated brackets

  • Dimensions: 33"W x 9"D x 1.5"H

  • Limited 2-year warranty



Warranty

Each component in this package is protected by a limited 2-year warranty covering defects in materials and workmanship.



Includes

iSteamX Control

  • Control

  • iSteamX Hub

  • 30 ft Control Cable (Mini-Din)

  • 30 ft iSteamX Cable (Screw Connector)

  • Power Supply

  • Silicone Sealant

  • Installation & Operation Manual

  • Limited 2-year warranty

Linear SteamHeads (x2)

  • Two SteamHeads

  • Two Faceplates

  • Two Diverters

  • Two AromaTrays

  • Two Silicone Sealants

  • Limited 2-year warranty

AutoFlush System

  • AutoFlush Valve with Cord

  • Limited 2-year warranty

Condensation Pan

  • Condensation Pan

  • Limited 2-year warranty

Specifications

Model

XBUTLER MAX LINEAR PKG



Model

ISTEAMX

Construction Material

Plastic, Metal, Electronics

Installation Type

Hardwired

Display

Full Color LCD

Interface

Touchscreen

Width

7.6" (19 cm)

Depth

0.6" (2 cm)

Height

5.2" (13 cm)

Weight

7 lbs (3 kg)



Model

STEAMHEAD 104480

Construction Material

Brass

SteamHead Connection

3/4" NPT

Width

16" (41 cm)

Depth

4.8" (12 cm)

Height

9.3" (24 cm)

Weight

9.2 lbs (4 kg)



Model

AUTOFLUSH CT81500

Construction Material

Aluminum and Brass

Drain Valve

1" NPT

Width

4" (10 cm)

Depth

2.4" (6 cm)

Height

4.4" (11 cm)

Weight

3 lbs (1 kg)



Model

CONDENSATION PAN 104402

Construction Material

Stainless Steel

Drain Fitting

3/4" NPT

Width

33" (84 cm)

Depth

9" (23 cm)

Height

1.5" (4 cm)

Weight

4 lbs (2 kg)

Manuals

Installation & Operation Manual

Technical Specs

Warranty

Features
  • Full-color LCD touchscreen with intuitive navigation
  • Automatic preheat and multi-language support (6 languages)
  • Create up to 8 personalized user profiles
  • Controls time, temperature, steam therapies, and optional accessories
  • Bluetooth®, radio, and auxiliary audio connectivity
  • Built-in safety features with timed shut-offs and passcode protection
  • Waterproof brass construction for in-shower installation
  • Dimensions: 7.6"W x 0.6"D x 5.2"H

Includes
  • iSteamX Control Kit: Control, hub, power supply, control cables, silicone sealant, installation & operation manual
  • Two Linear SteamHeads: SteamHeads, faceplates, diverters, AromaTrays, silicone sealant
  • AutoFlush System: AutoFlush valve with cord
  • Condensation Pan
Specifications
  • Model: XBUTLER MAX LINEAR PKG
  •
  • Model: ISTEAMX
  • Construction Material: Plastic, Metal, Electronics
  • Installation Type: Hardwired
  • Display: Full Color LCD
  • Interface: Touchscreen
  • Width: 7.6" (19 cm)
  • Depth: 0.6" (2 cm)
  • Height: 5.2" (13 cm)
  • Weight: 7 lbs (3 kg)
  •
  • Model: STEAMHEAD 104480
  • Construction Material: Brass
  • SteamHead Connection: 3/4" NPT
  • Width: 16" (41 cm)
  • Depth: 4.8" (12 cm)
  • Height: 9.3" (24 cm)
  • Weight: 9.2 lbs (4 kg)
  •
  • Model: AUTOFLUSH CT81500
  • Construction Material: Aluminum and Brass
  • Drain Valve: 1" NPT
  • Width: 4" (10 cm)
  • Depth: 2.4" (6 cm)
  • Height: 4.4" (11 cm)
  • Weight: 3 lbs (1 kg)
  •
  • Model: CONDENSATION PAN 104402
  • Construction Material: Stainless Steel
  • Drain Fitting: 3/4" NPT
  • Width: 33" (84 cm)
  • Depth: 9" (23 cm)
  • Height: 1.5" (4 cm)
  • Weight: 4 lbs (2 kg)
