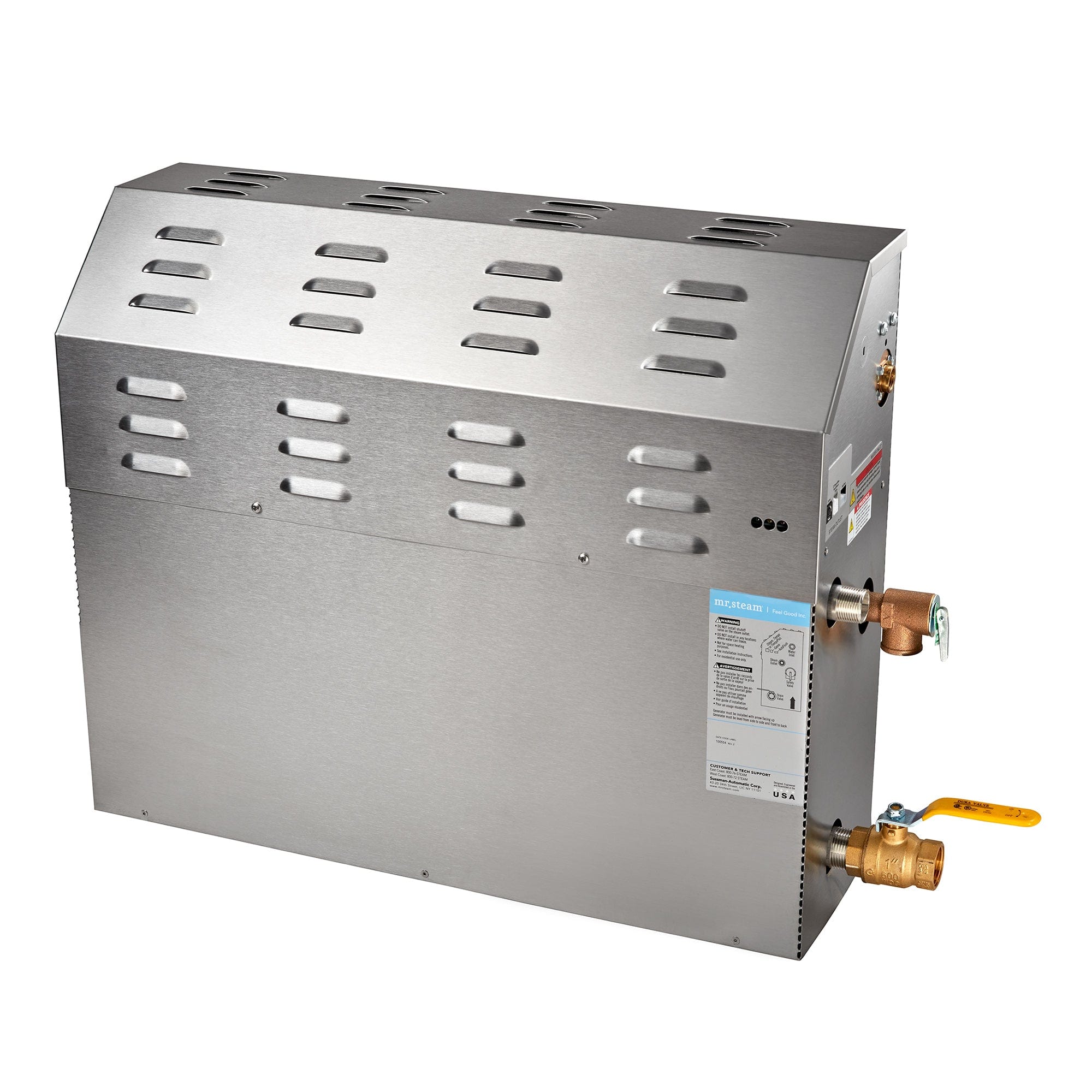

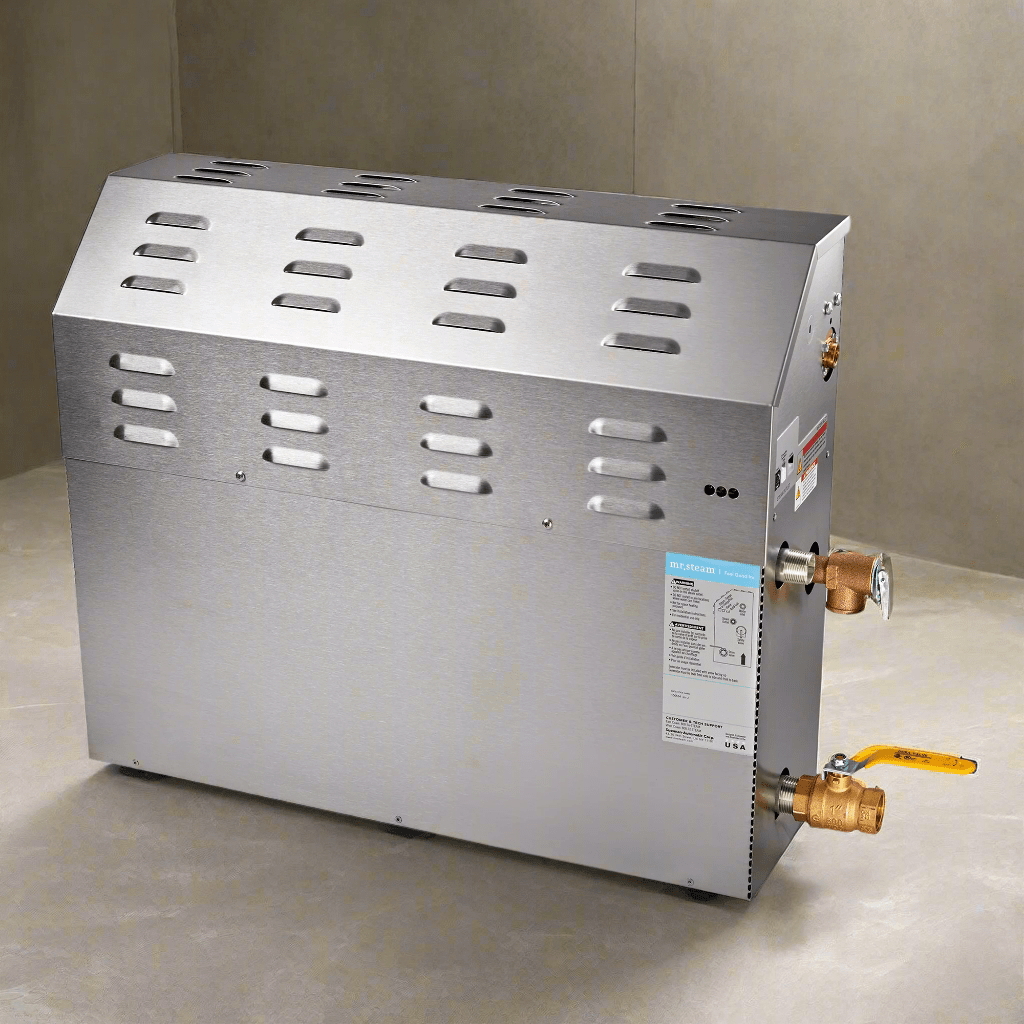

Mr. Steam Steam Shower Generator Mr Steam MX6 MS MAX Series 30kW Steam Shower Generator
Mr. Steam Steam Shower Generator Mr Steam MX6 MS MAX Series 30kW Steam Shower Generator

Mr. Steam MX-R MAX 24kW Steam Shower Generator

Leisurecraft Logo
Authorized Dealer - Full Warranty Included

ONE TIME INVESTMENT

Sale price$5,320.00 Regular price$7,000.00
Save $1,680.00
+ Free Shipping
OR
Model: MX5EC1
Price Match Guarantee
No Sales Tax in Most States
FREE Shipping (over 500$ )
Questions? Call Us: 1-833-322-4836
MAKING STEAM SINCE 1917
Voltage:

Voltage

Features:

Features

$ Shipping Fee to United States Estimated arrival between May 29 and June 03 Curbside delivery only and will lower the item's to ground level.
Avatar

Need Sauna Advise?

Reach out for expert help and great deals!

Chat Icon

Expert Live Chat

Time Icon
Mon–Sun: 9am–8pm
How does delivery work?

Mr.Steam products ship free to your doorstep via FedEx or UPS. Once dispatched, you’ll receive a tracking number to follow your order. All shipments are fully insured and carefully packaged at our Chicago facility to ensure safe delivery.

What are the electrical requirements?

MrSteam steam generators are designed to operate on 208V or 240V power, with residential models typically using single-phase electrical service. Commercial models are also available in 208V, 240V, or 480V configurations, most commonly in three-phase.

What is the warranty?

MrSteam steam generators are backed by a limited manufacturer’s warranty, offering two years of coverage for residential applications and one year for commercial applications. The warranty applies when the unit is properly installed and maintained according to MrSteam guidelines and is limited to parts replacement only.

Description

Mr. Steam MX5E 24kW Home Steam Shower Generator
Elevate your steam bathing experience with the Mr. Steam MX5E, a 24kW powerhouse designed for home and day spa steam rooms up to 822 adjusted cubic feet (ACF). This updated model replaces the popular MS Super 5E, offering enhanced performance and durability. Please note that the required control package is sold separately.

Key Features:

  • Full-port drain valve for optimal drainage.
  • ASME safety valve for peace of mind.
  • Advanced electronic water-level control system.
  • LED indicators for clear, easy-to-read diagnostics.

Durable Construction and Superior Technology:
Made from high-grade stainless steel, the MX5E is built to last. It’s powered by an advanced microprocessor platform, making it an excellent choice for larger residential or day spa settings.

Modular and Accessory-Ready:
The Plug and Play design allows you to effortlessly enhance your setup with features like ChromaTherapy lighting, SteamLinx connectivity, and AromaTherapy for an ultra-luxurious experience.

Compact and Flexible Installation:
Compact enough to fit discreetly in closets, vanities, or cabinets, the MX5E can be installed up to 60 feet away from the steam room. Available in 208V and 240V single-phase configurations, it fits seamlessly into your setup.

Optional Express Steam:
For even faster steam generation, add the optional Express Steam feature, which keeps water preheated for immediate use.

Recommended Accessories:
Pair the MX5E with any Mr. Steam control package for full functionality, and consider the AutoFlush system for hassle-free draining and reduced mineral build-up.

Certified Safety and Lifetime Warranty:
This UL-listed, CE- and NOM-certified generator is designed for safety, reliability, and ease of service. It also comes with a limited lifetime warranty for added peace of mind.

Proudly Made in the USA:
All Mr. Steam generators are designed and manufactured in the USA, ensuring exceptional quality and performance.

Features

  • For steam baths sized from 679 to 822 adjusted cubic feet
  • Available in 240V and 208V operation
  • Stainless Steel tank
  • Industrial-grade, serviceable heating element
  • MiniDIN control connections
  • Available Auto Drain automatic draining system
  • Durable electronic components
  • Electronic water-level control system
  • Low-voltage safety control circuits
  • Solid-state circuitry
  • Diagnostic LED Displays
  • Full port drain valve
  • ASME safety valve
  • UL/CUL/NOM/CE Listed


Includes

  • 24kW Steam bath generator, 27-5/8″ x 20-3/4″ x 7-7/8″
  • Installation and operation manual
  • Limited warranty


Specifications

Model MX5E
Minimum Adjusted Cubic Feet 679
Maximum Adjusted Cubic Feet 822
Shipping Weight 67 lbs
Kilowatt Rating 24 KW
Electrical Specifications Electrical Chart
Water Supply Connection 3/8″ NPT
Generator Steam Line Connection 3/4″ NPT
Steam Head Connection 1/2″ NPT
Drain Connection 1″ NPT
Safety Relief Valve Connection 3/4″ NPT
Safety Relief Valve PSIG 15 PSIG
Control “Rough In” Cut Out 1″
Generator Control Connection 8-Pin Mini-DIN Connector
Generator Control Cable 30′, 8 Conductor, 24 AWG, Shielded Cable
Width 27-5/8″
Depth 7-7/8″
Height 20-3/4″


Manual

Mr. Steam MX Series IOM

Mr. Steam MX Series Spec Sheet

Mr. Steam Quick Set up Guide

MrSteam-Residential-Steambaths-Warranty-2023 (1)

Features
  • Designed for steam rooms from 679 to 822 adjusted cubic feet
  • Available in 208V or 240V, single-phase configurations
  • Stainless steel tank for long-lasting performance
  • Industrial-grade, serviceable heating element
  • Advanced microprocessor-based steam bath technology
  • Electronic water-level control system
  • Durable electronic components
  • Solid-state circuitry
  • LED diagnostic indicators for easy troubleshooting
  • Low-voltage safety control circuits
  • Mini-DIN control connections
  • Full-port drain valve for efficient drainage
  • ASME safety valve
  • Modular plug-and-play compatibility with AromaTherapy, ChromaTherapy, and SteamLinx
  • Optional Express Steam feature for faster steam activation
  • Optional AutoDrain system to reduce mineral buildup and extend generator life
Includes
  • MX5E 24kW Steam Generator
  • Installation & Operation Manual
  • Limited Lifetime Warranty
Specifications
  • Model: MX5E
  • Kilowatt Rating: 24kW
  • Minimum Room Size: 679 adjusted cubic feet
  • Maximum Room Size: 822 adjusted cubic feet
  • Voltage Options: 208V or 240V
  • Phase: Single Phase
  • Shipping Weight: 67 lbs
  • Water Supply Connection: 3/8″ NPT
  • Generator Steam Line Connection: 3/4″ NPT
  • Steam Head Connection: 1/2″ NPT
  • Drain Connection: 1″ NPT
  • Safety Relief Valve Connection: 3/4″ NPT
  • Safety Relief Valve Rating: 15 PSIG
  • Control Rough-In Cutout: 1″
  • Control Connection: 8-Pin Mini-DIN
  • Control Cable: 30′, 8-conductor, 24 AWG shielded
  • Dimensions: 27-5/8″ W × 7-7/8″ D × 20-3/4″ H
Manuals
