Mr. Steam Steam Shower Generator Mr Steam MS400E MS-E Series 9kW Steam Shower Generator
Mr. Steam Steam Shower Generator Mr Steam MS400E MS-E Series 9kW Steam Shower Generator

Mr. Steam MS-R 7.5kW Steam Shower Generator

Leisurecraft Logo
Authorized Dealer - Full Warranty Included

ONE TIME INVESTMENT

Sale price$2,853.00 Regular price$3,450.00
Save $597.00
+ Free Shipping
OR
Model: MS225EC1
Price Match Guarantee
No Sales Tax in Most States
FREE Shipping (over 500$ )
Questions? Call Us: 1-833-322-4836
MAKING STEAM SINCE 1917
Voltage:

Voltage

Features:

Features

$ Shipping Fee to United States Estimated arrival between June 25 and June 30 Curbside delivery only and will lower the item's to ground level.
Avatar

Need Sauna Advise?

Reach out for expert help and great deals!

Chat Icon

Expert Live Chat

Time Icon
Mon–Sun: 9am–8pm
How does delivery work?

Mr.Steam products ship free to your doorstep via FedEx or UPS. Once dispatched, you’ll receive a tracking number to follow your order. All shipments are fully insured and carefully packaged at our Chicago facility to ensure safe delivery.

What are the electrical requirements?

MrSteam steam generators are designed to operate on 208V or 240V power, with residential models typically using single-phase electrical service. Commercial models are also available in 208V, 240V, or 480V configurations, most commonly in three-phase.

What is the warranty?

MrSteam steam generators are backed by a limited manufacturer’s warranty, offering two years of coverage for residential applications and one year for commercial applications. The warranty applies when the unit is properly installed and maintained according to MrSteam guidelines and is limited to parts replacement only.

Description

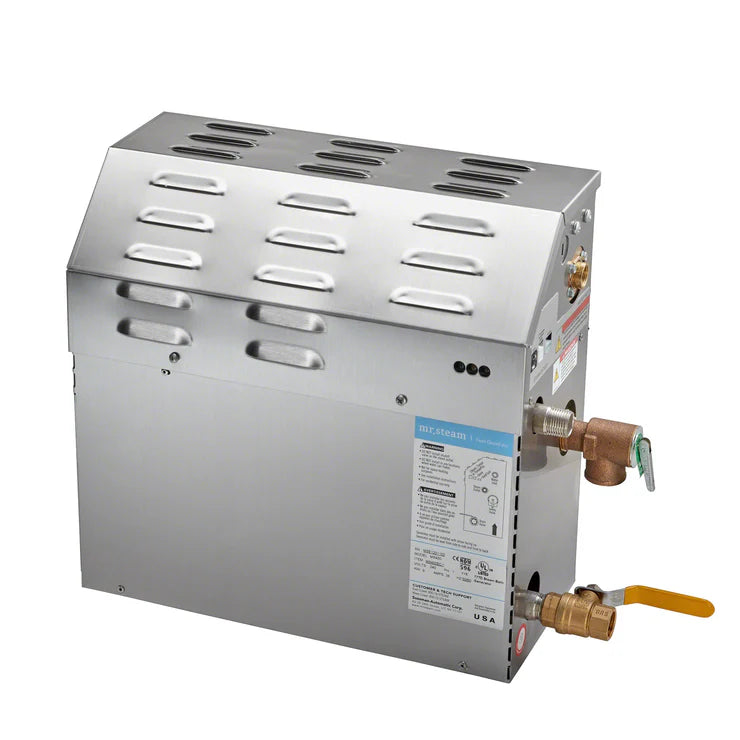

Mr. Steam MS225E 7.5kW Steam Shower Generator

Transform your home into a luxurious spa with the Mr. Steam MS225E, a 7.5kW steam generator crafted for residential steam rooms up to 161 adjusted cubic feet (ACF). Control package sold separately.

Built for Performance and Longevity
The MS225E is part of the MS-E Series, designed to deliver quiet, efficient, and reliable steam bathing experiences for years to come. It features an advanced microprocessor and intelligent steam bath technology, making it an excellent choice for home use.

Constructed entirely from durable stainless steel, the generator boasts industrial-grade heating elements, a precision temperature probe, and an easy-to-read LED diagnostic system for seamless operation.

Eco-Friendly and Economical
Enjoy a consistent steam experience with the MS225E, thanks to its proprietary water dispersal chamber that ensures continuous steam production. With a water usage of less than two gallons per 20-minute session, this generator is as eco-conscious as it is efficient.

Compact and Versatile Design
The MS225E’s compact size—comparable to a briefcase—makes it easy to install in discreet locations like cabinets, closets, or vanities, keeping it out of sight without compromising functionality. It’s an ideal addition to any home steam shower setup.

Optional Express Steam Feature
Enhance your experience with the optional Express Steam feature, which uses a built-in thermostat to keep the water heated and ready for quick steaming.

Customizable Control Options
This steam generator works with all Mr. Steam controls and the Steamlinx mobile app, letting you personalize your steam room experience with ease. Choose the control package that suits your preferences for temperature, duration, and more.

Recommended Maintenance Add-On
Pair your MS225E with the AutoFlush Drain System to automatically clean the tank after each use, preventing mineral build-up and extending the unit’s lifespan for optimal performance.

Made in the USA with Safety in Mind
The MS225E steam generator is proudly designed and built in America, meeting rigorous US and Canadian UL safety standards, as well as CE and NOM certifications. Backed by a limited lifetime warranty, this fully serviceable generator is a long-term investment in your wellness.

Available Configurations
The MS225E is available in both 240V (MS225EB1) and 208V (MS225EC1) single-phase configurations to suit your specific needs.

Features

  • For steam baths sized from 108 to 161 adjusted cubic feet
  • Available in 240V and 208V operation
  • Stainless Steel tank
  • Industrial-grade, serviceable heating element
  • MiniDIN control connections
  • Available Auto Drain automatic draining system
  • Durable electronic components
  • Electronic water-level control system
  • Low-voltage safety control circuits
  • Solid-state circuitry
  • Diagnostic LED Displays
  • Full port drain valve
  • ASME safety valve
  • UL/CUL/NOM/CE Listed


Includes

  • 7.5KW Steam bath generator, 14-1/2″L x 6-3/4″W x 14-3/4″H
  • Installation and operation manual
  • Limited warranty


Specifications

Model MS 225E
Minimum Adjusted Cubic Feet 108
Maximum Adjusted Cubic Feet 161
Shipping Weight 30 lbs
Kilowatt Rating 7.5 KW
Electrical Specifications Electrical Chart
Water Supply Connection 3/8″ NPT
Generator Steam Line Connection 1/2″ NPT
Steam Head Connection 1/2″ NPT
Drain Connection 1/2″ NPT
Safety Relief Valve Connection 3/4″ NPT
Safety Relief Valve 15 PSIG
Control “Rough In” Cut Out 1″
Generator Control Connection 8-Pin Mini-DIN Connector
Generator Control Cable 30′, 8 Conductor, 24 AWG, Shielded Cable
Width 14-1/2″
Depth 6-3/4″
Height 14-3/4″



Features
  • Designed for residential steam rooms from 108 to 161 adjusted cubic feet
  • Available in 208V or 240V, single-phase configurations
  • Corrosion-resistant stainless steel tank
  • Industrial-grade, serviceable heating element
  • Advanced microprocessor technology for precise steam control
  • Proprietary water dispersal chamber for consistent steam output
  • Electronic water-level control system
  • Solid-state circuitry with LED diagnostic indicators
  • Low-voltage safety control circuits
  • Mini-DIN control connections
  • Full-port drain valve for simplified maintenance
  • ASME safety valve
  • Optional Express Steam feature for faster steam start-up
  • Optional AutoFlush drain system to reduce mineral buildup
  • Quiet, energy-efficient operation using less than 2 gallons of water per 20-minute session
  • UL, cUL, CE, and NOM listed
Includes
  • MS225E 7.5kW Steam Generator
  • Installation & Operation Manual
  • Limited Lifetime Warranty
Specifications
  • Model: MS225E
  • Kilowatt Rating: 7.5kW
  • Minimum Room Size: 108 adjusted cubic feet
  • Maximum Room Size: 161 adjusted cubic feet
  • Voltage Options: 208V or 240V
  • Phase: Single Phase
  • Shipping Weight: 30 lbs
  • Water Supply Connection: 3/8″ NPT
  • Generator Steam Line Connection: 1/2″ NPT
  • Steam Head Connection: 1/2″ NPT
  • Drain Connection: 1/2″ NPT
  • Safety Relief Valve Connection: 3/4″ NPT
  • Safety Relief Valve Rating: 15 PSIG
  • Control Rough-In Cutout: 1″
  • Control Connection: 8-Pin Mini-DIN
  • Control Cable: 30′, 8-conductor, 24 AWG shielded
  • Dimensions: 14.5″ W × 6.75″ D × 14.75″ H
