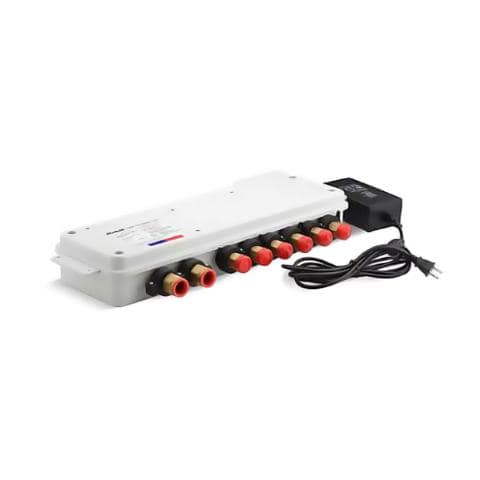

Kohler DTV Series 6-Port Thermostatic Valve K-682-K
The Kohler DTV Series 6-Port Thermostatic Valve revolutionizes your showering experience with advanced digital thermostatic technology. Designed for use with the DTV+ system, this valve ensures precise, consistent temperature control while offering six independently controllable outlets. Ideal for custom showering applications, it supports versatile setups and can be paired with a second valve to expand functionality, enabling additional outlets or dual-temperature operation.
Features
- Digital Thermostatic Technology: Delivers accurate and consistent temperature control.
- Six Outlet Ports: Independently controllable 1/2" NPT outlets for ultimate flexibility.
- High Flow Rate: Maximum flow rate of 21 gpm (10 gpm max from one outlet).
- Enhanced Safety: Includes anti-scald protection, crossflow prevention, and a high-temperature limit setting.
- Durable Construction: Made from premium brass for reliability and longevity.
- Versatile Applications: Suitable for showering and bathing setups.
- Customizable Setup: Can be paired with a second valve for additional outlets or dual-temperature configurations.
- Space-Saving Design: Fits within standard 2" x 4" wall cavities.
Specifications
- Model: K-682-K
- Material: Brass
- Mount: Wall
- Voltage: 120/240V
- Amperage: 1.5 Amps
- Hertz: 50/60 Hz
- Flow Rate: Up to 21 gpm, max 10 gpm from one outlet
- Inlets: 3/4" NPT
- Outlets: 1/2" NPT
- Certifications: UL Rated
- Dimensions: Width 20-1/8", Depth 7-3/8", Height 3-5/16"
Includes
- 6-Port Thermostatic Valve
- 110 V AC Power Supply
- 5-Year Limited Warranty
Required Items (Sold Separately)
- Kohler DTV+ System
- K-97172 DTV+ Data Cable
Transform your shower into a luxurious and customizable experience with the Kohler DTV Series 6-Port Thermostatic Valve. Designed to elevate your bathing experience through cutting-edge technology and flexibility, this valve is the ideal choice for sophisticated custom applications.
